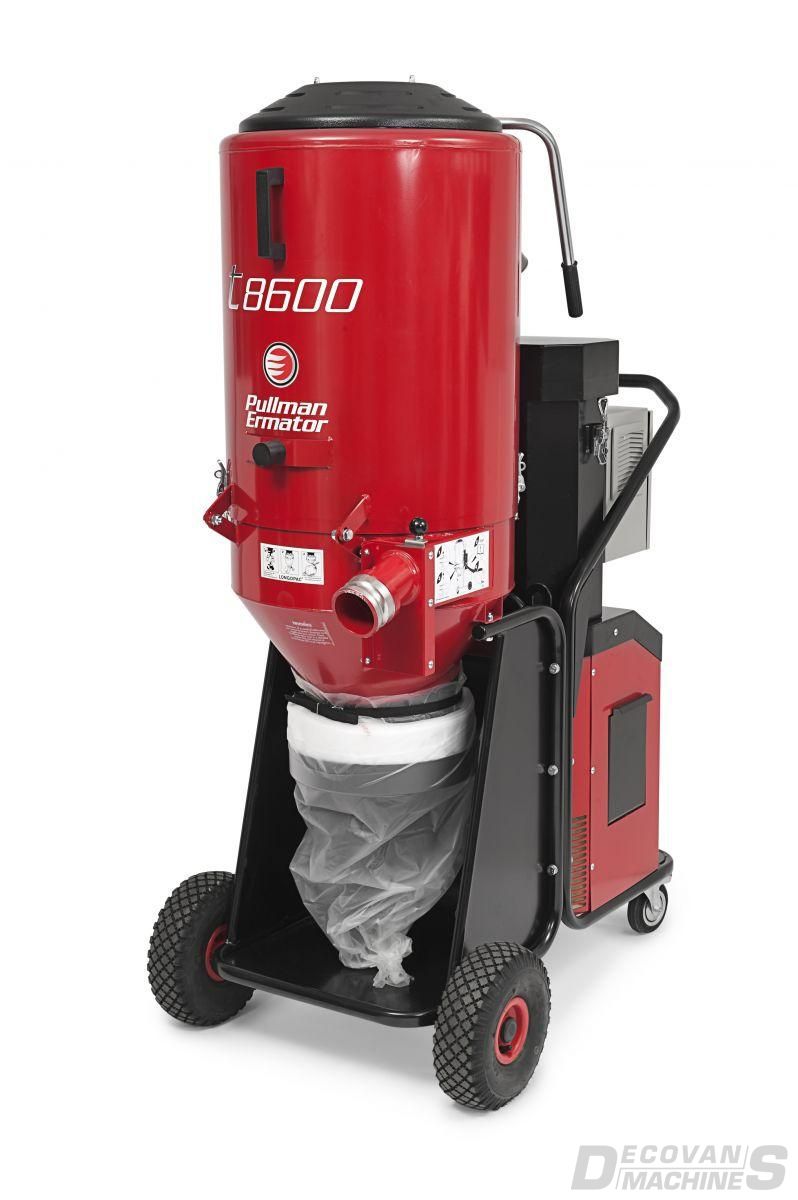

Pullman-Ermator T8600 HEPA Dust Extractor
Creating Clean Air in Construction, Abatement and Renovation!
The Pullman-Ermator T8600 has the same equipment as the T7500 but with a more powerful engine, for people who just need more.
The dust separation in the cyclone is done in 3 steps. The cyclone operation first separates the coarsest particles. Then, the finer dust is filtered out by a polyester prefilter (99,9%). The remaining fine dust is separated with the aid of two HEPA-13 filters with a dust separation efficiency of 99,995%.
Features Pullman-Ermator T8600
- Efficient Jet-Pulse filter cleaning
- Polyester prefilter
- 2 x HEPA-13 absolute filters*
- Dust collection in Longopac bag system (20m)
* all the filters are tested individually DOP : filter efficiency of 99,993% to 99,999% with a particle size of 0,3µm
Technical properties Pullman-Ermator T8600
| Power | 7,2-8,6 kW |
| Tension | 400 V / 3-phase / 60Hz |
| Current | 16 A |
| Airflow | 600 m³/h |
| Vaccuum | -30 kPa |
| Inlet | Ø 76 mm |
| Main filters | 2,3 m² (>99,5%) |
| Absolute filters (HEPA-13) | 2 x 2,5 m² (>99,995%) |
| Dust collection | Longopac |
| Dimensions | 1200x760x1780 mm |
| Weight | 215 kg |
| Sound level | 74 dB (A) |
The Pullman-Ermator T8600 is delivered complete with 10m hose (Ø76mm).
